A 3D metrology suite that reads the engineering drawing, runs your existing DMIS programs directly on 3D scans and reports full GD&T — scanner-agnostic, with AI-driven auto-inspection that works fully offline.
One recorded program, four stages
STL / PLY / OBJ from any scanner
Auto, point-pair, RPS or datum
GD&T, sections, DMIS replay
Ballooned PDF / Excel / PAS
Three steps, recorded once and replayed on every part — the same program runs in batch, unattended.
Drop the PDF drawing, the nominal STEP/IGES and the scan mesh. Ai-Inspect balloons the drawing and builds the inspection plan.
Auto-align the scan to the CAD, then measure: GD&T, sections, color map — or run the DMIS program you already use on the CMM.
Export the ballooned PDF, Excel or PAS file. Save the program and run the next part — or a whole folder — in one click.
A complete metrology workflow — from alignment to GD&T to professional reports — in one professional desktop suite.
Load the PDF drawing — Ai-Inspect detects dimensions, GD&T frames and datums, balloons them and builds the inspection plan automatically.

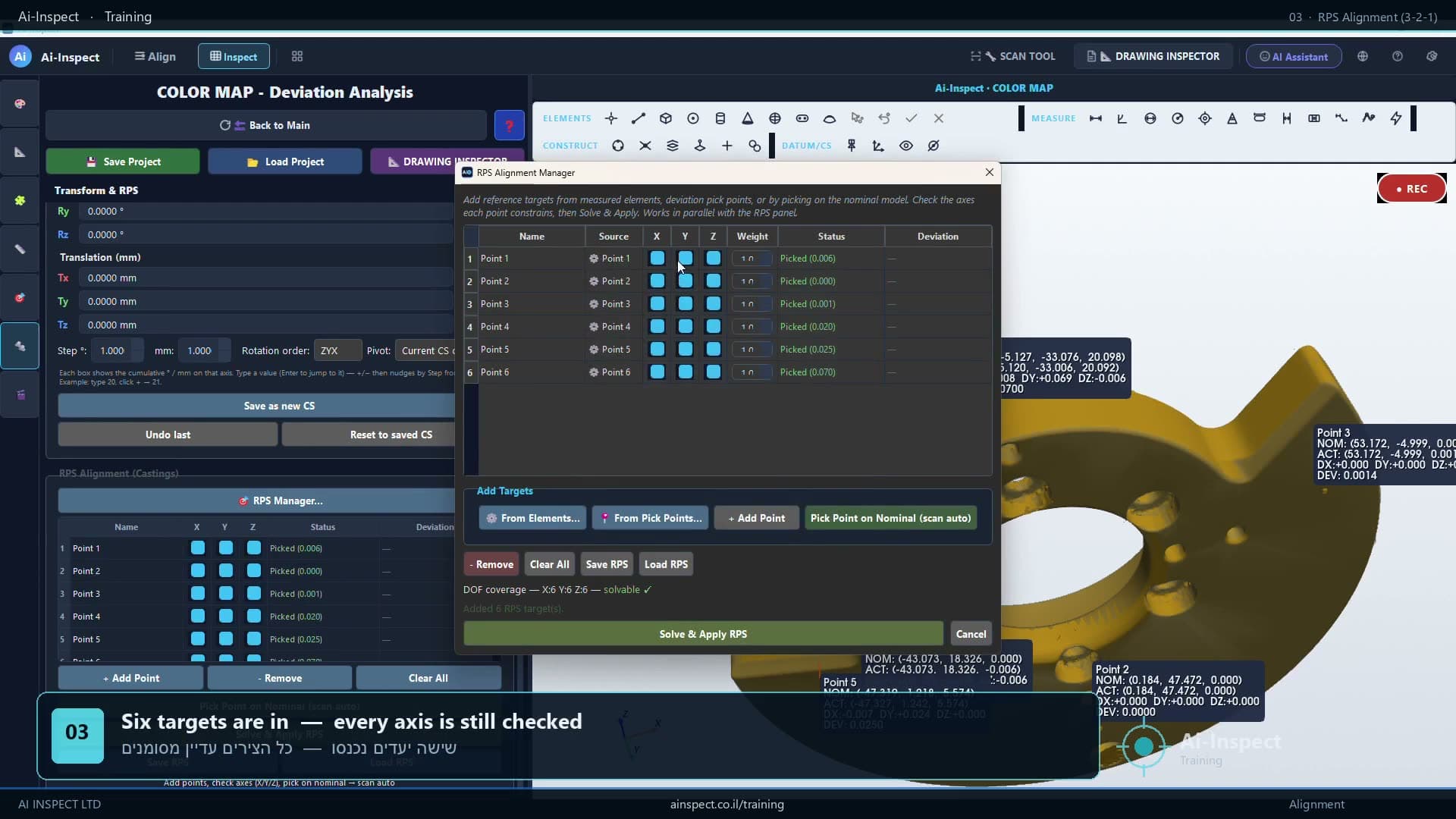

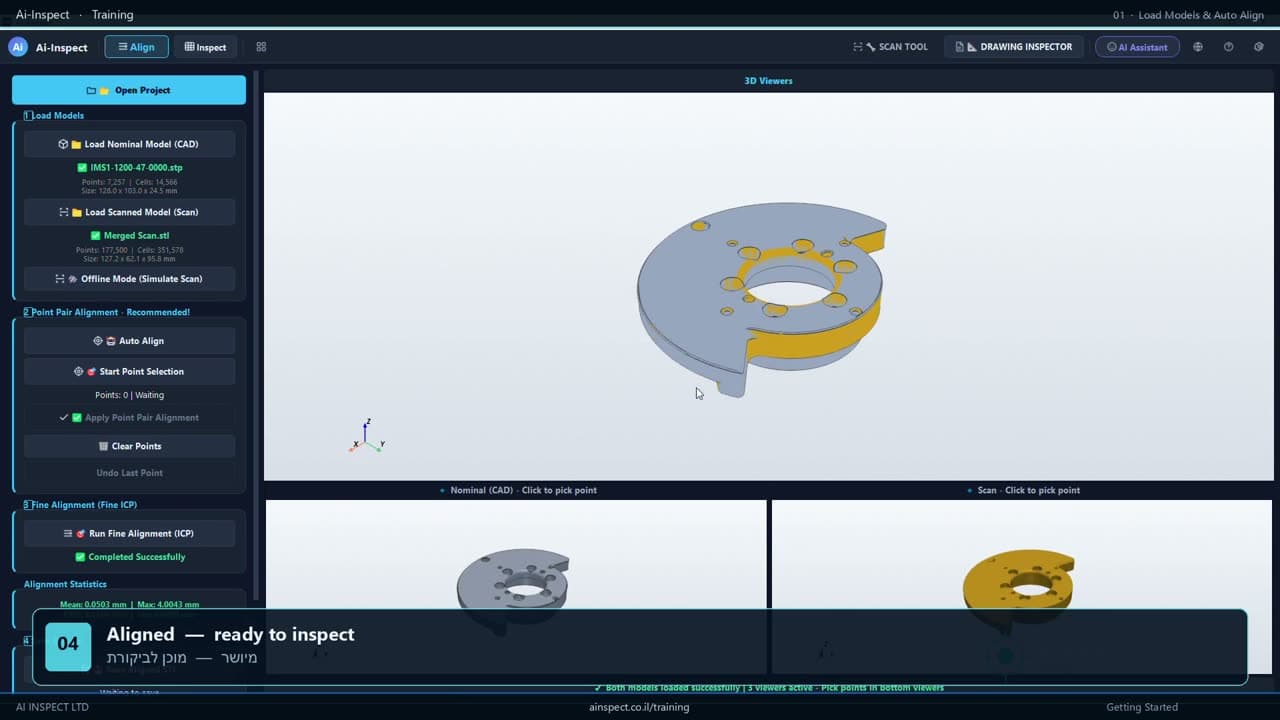

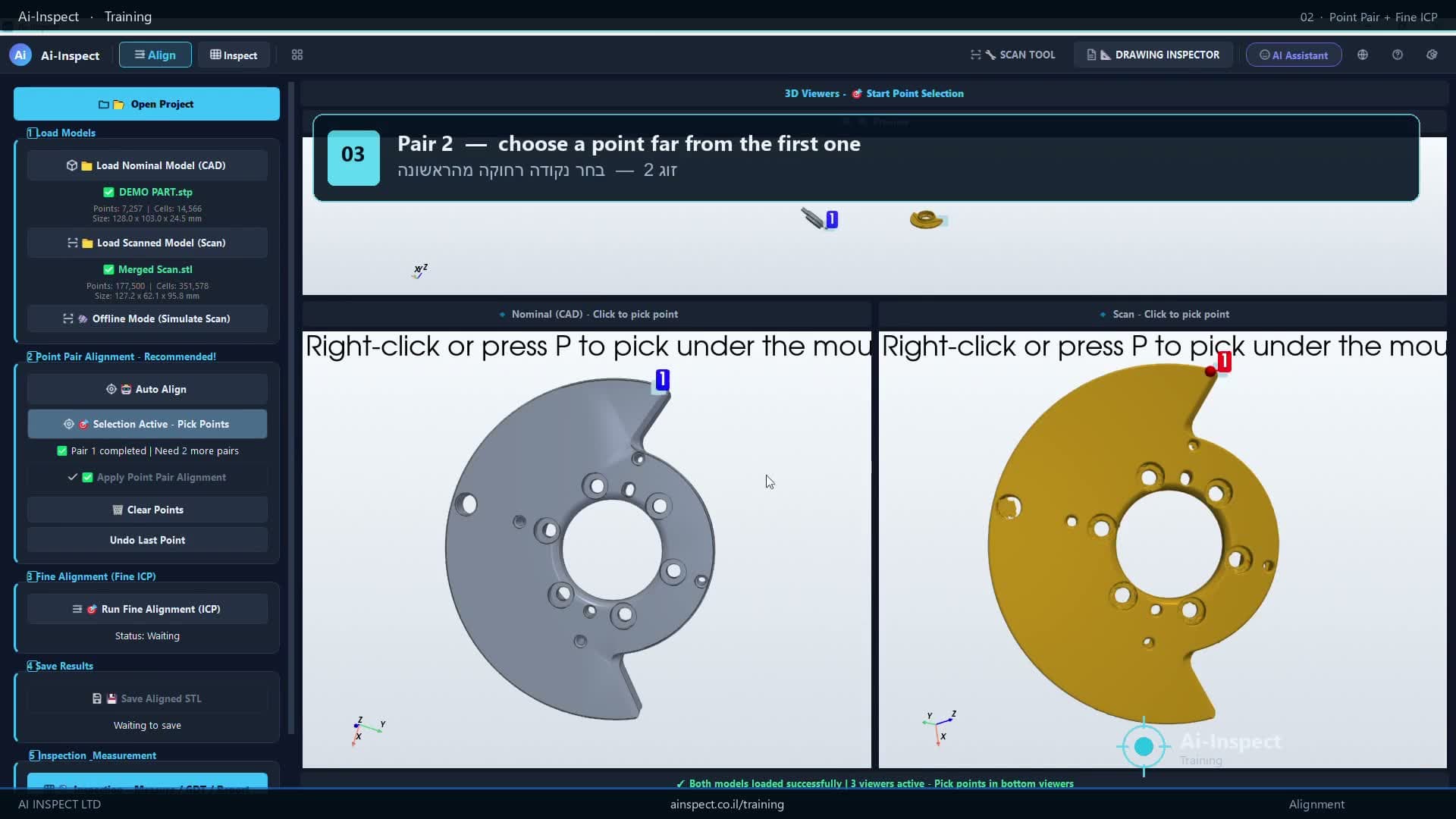

A dedicated module: one-click automatic scan-to-CAD alignment, plus RPS, ICP, Point-Pair and thin-part refinement.
Every ASME Y14.5 / ISO 1101 characteristic with multi-datum reference frames, MMC/LMC bonus and live previews.
Full-surface color map with CPK / SPC statistics, smart balloons and interactive point picking.
The core workflow: run existing CMM DMIS programs directly on a 3D scan — CAMIO, PC-DMIS and PAS dialects supported.
Cut the part anywhere — axis, angle or through any plane element — then dimension the 2D section like a drawing view.
Record an inspection once — replay it as a true measurement program on every part, or run a whole folder in batch.
An autonomous measurement agent you command in plain language — runs fully offline, with an optional cloud upgrade.
Automatic scan stitching: auto-align multiple partial scans to each other, merge, clean, fill holes and edit interactively.
Branded PDF / CSV / Excel / HTML reports with balloon ordering, editable results, PAS export and automatic FAI generation.

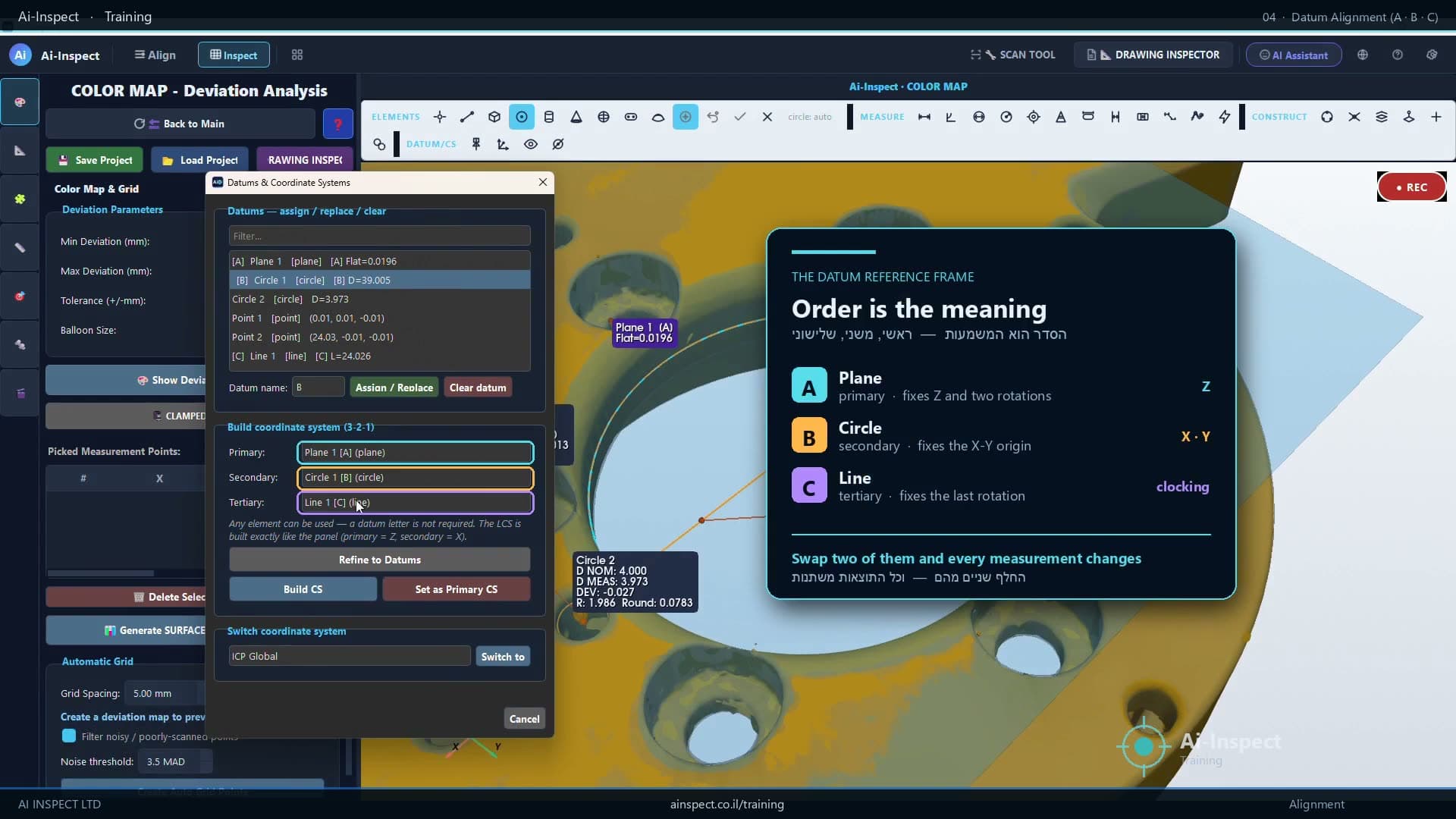

Build, store and switch local coordinate systems live; datums survive CS switches and replay correctly in programs.
Dark, high-contrast workspace with a 3D viewer, step panel and live statistics — the same UI in Hebrew, English and Russian.
CMM programs (DMIS) and 3D scans have lived in separate worlds: switching to scanning meant rebuilding every inspection program by hand. Ai-Inspect runs the DMIS program you already have directly on the scan — same datums, same features, same report.
Works with the tools you already have
Trusted across regulated, high-precision industries where geometry is everything.
AS9100 first-article and serial inspection of complex, thin-walled parts with tight tolerances and full traceability.
IATF 16949 high-volume quality control with batch automation: program once, inspect every part in the series unattended.
ISO 13485 verification of implants and instruments with private, offline analysis — no data leaves your facility.
Secure, air-gapped inspection for defense manufacturing where confidentiality and traceability are non-negotiable.
Start measuring with Ai-Inspect today, or book a guided demo with our metrology team.
